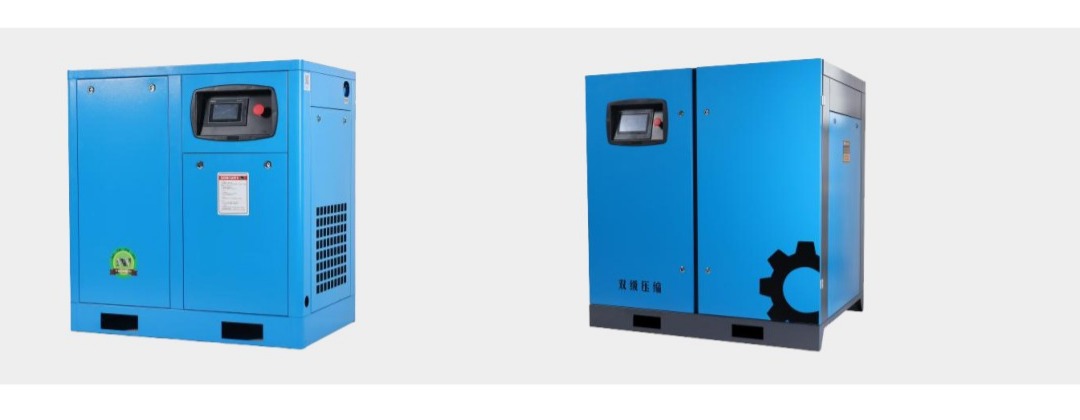

Two-Stage PM VFD Screw Air Compressor
Efficient two-stage compression for sustained high-flow air supply
Product role
Efficient two-stage compression for sustained high-flow air supply
Two-stage compression is designed for customers who need sustained flow, controlled operating temperature and dependable performance in larger production systems.
Core advantages
- 01Two-stage compression for high-flow duty
- 02Designed to limit compression temperature rise
- 03Project-specific system matching
Typical applications
Where this product fits
03 · Technical specifications
Compare models by pressure, flow and power
Specifications are provided for preliminary selection. Final voltage, pressure, flow and configuration are confirmed through technical review and the sales order.
Swipe or scroll horizontally to compare every specification
| Model | Configuration | Power kW | Discharge pressure MPa | Free air delivery m³/min | Air outlet size | Dimensions (L × W × H) mm | Weight kg | Ask about this model |
|---|---|---|---|---|---|---|---|---|
| DualCore-75-VF | Two-stage | 7.5 | 0.8–1.2 | 1.3–0.9 | DN15 | 900 × 580 × 870 | 144 | Ask about this model |
| DualCore-110-VF | Two-stage | 11 | 0.8–1.2 | 2.0–1.4 | DN20 | 1000 × 730 × 1120 | 230 | Ask about this model |
| DualCore-150-VF | Two-stage | 15 | 0.8–1.2 | 2.8–2.0 | DN20 | 1000 × 730 × 1120 | 230 | Ask about this model |
| DualCore-220-VF | Two-stage | 22 | 0.8–1.2 | 4.1–3.2 | DN25 | 1110 × 880 × 1160 | 320 | Ask about this model |
| DualCore-370-VF | Two-stage | 37 | 0.8–1.2 | 7.1–5.4 | DN50 | 1600 × 1120 × 1540 | 950 | Ask about this model |
| DualCore-450-VF | Two-stage | 45 | 0.8–1.2 | 9.3–6.5 | DN50 | 1600 × 1120 × 1540 | 970 | Ask about this model |
| DualCore-550-VF | Two-stage | 55 | 0.8–1.2 | 11.8–8.6 | DN50 | 2180 × 1390 × 1660 | 1860 | Ask about this model |
| DualCore-750-VF | Two-stage | 75 | 0.8–1.2 | 15.6–11 | DN50 | 2180 × 1390 × 1660 | 1960 | Ask about this model |
| DualCore-900-VF | Two-stage | 90 | 0.8–1.2 | 19.1–14.3 | DN65 | 2500 × 1630 × 1930 | 2360 | Ask about this model |
| DualCore-1100-VF | Two-stage | 110 | 0.8–1.2 | 21.6–16 | DN65 | 2500 × 1630 × 1930 | 2390 | Ask about this model |
| DualCore-1320-VF | Two-stage | 132 | 0.8–1.2 | 25.3–19.8 | DN65 | 2500 × 1630 × 1930 | 2445 | Ask about this model |
| DualCore-1600-VF | Two-stage | 160 | 0.8–1.2 | 32.3–24.7 | DN100 | 3600 × 2100 × 2280 | 3800 | Ask about this model |
| DualCore-1850-VF | Two-stage | 185 | 0.8–1.2 | 36.4–28.6 | DN100 | 3600 × 2100 × 2280 | 4100 | Ask about this model |
| DualCore-2200-VF | Two-stage | 220 | 0.8–1.2 | 45.6–35.4 | DN125 | 3860 × 2100 × 2280 | 5100 | Ask about this model |
| DualCore-2500-VF | Two-stage | 250 | 0.8–1.2 | 50.3–40.1 | DN125 | 3860 × 2100 × 2280 | 5600 | Ask about this model |
